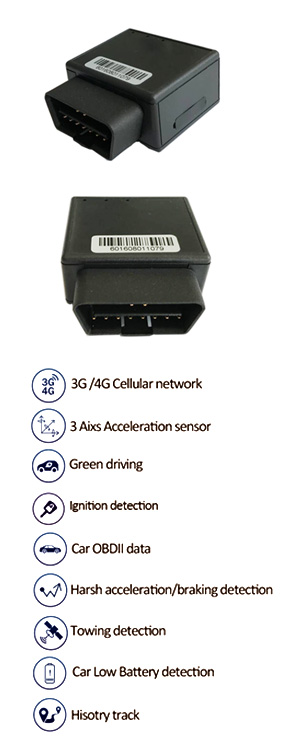

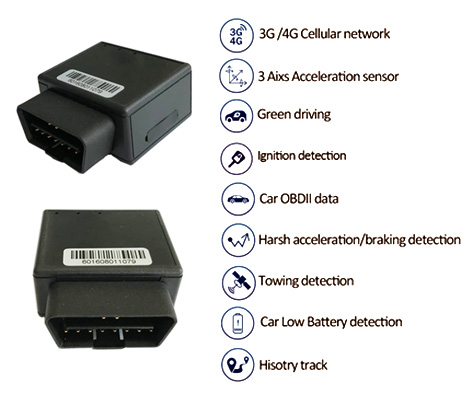

OBD II CAR TRACKER

---

Description:

---

---

Feature:

---

Items	Functions
Communication	Location Data transmitting-GPRS/ LTE(TCP) Commands- SMS/ GPRS/ Serial port
Position Tracking	Real-time location monitoring / querying Track by time interval Cornering report
GPS Mileage	GPS Mileage report
Fuel consumption Analysis	Trip mileage fuel consumption analysis and different speed fuel consumption analysis
Alarm (Event)	Device Unplug Reminder Low Battery Over Speed alarm Harsh Braking / Harsh Acceleration / Harsh turning / Harsh Pedaling accelerator alarm Vibration alarm Towing alarm Idling alarm Fatigue Driving alarm Rapid Lane change alarm High Coolant temperature / Low Coolant temperature alarm Throttle Clearing Reminder / Maintenance Reminder alarm Collision alarm Rollover alarm No Protocol read
Buffer	14000 pcs Data in Buffer when in network blind area
Initialization	Initialize tracker’s Parameters via SMS/GPRS/Serial port
Upgrading	Upgrading Firmware via OTA or Serial Port



---

General Technical Specifications:

---

Items	Specifications
Gift Box Dimension	120*120*50mm
Tracker Dimension	50*60*24 mm
Tracker Color	Black
Weight	Tracker weight: 0.01kg Total Package: 0.3kg
Power Supply	8V -- 28V DC, suitable for 12V vehicle.
Working Current	120mA(12V/DC)-WIFI closed; 10mA in sleeping mode; MHotspot mode: 200mA~300mA
Operating temperature	-35℃ -- 75℃
Storage temperature	-40℃ -- 80℃
Operating humidity	5% -- 95%
LED indicator	Green led and Red led light indicates GPS and GSM status respectively, Blue led indicates communication status.
Supported OBD Protocol	ISO 9141-2 ISO 14230-1 ISO 14230-2 ISO 15765-2 ISO 15765-4
4G LTE	Chipset QUECTEL EC25 LTE Module. (or EC20 ) Frequency FDD LTE: B1 / B3/ B8 ( 2100 / 1800 / 900) Max Simultaneous Tag:Detection: 40 TDSCDMA: B34/B39 UMTS: B1/B8 GSM: 900 / 1800MHz
GPS Module	Chipset: SKYLAB SKG09BL Positioning accuracy: < 5m (95%) Cold start time: < 45s (in average) Warm start time: < 2 s (in average) Acquisition Sensitivity: -159dbm Acquisition channel: 60-channel GPS Frequency: 1575.42 MHz
G-Sensor	±2/4/8G
